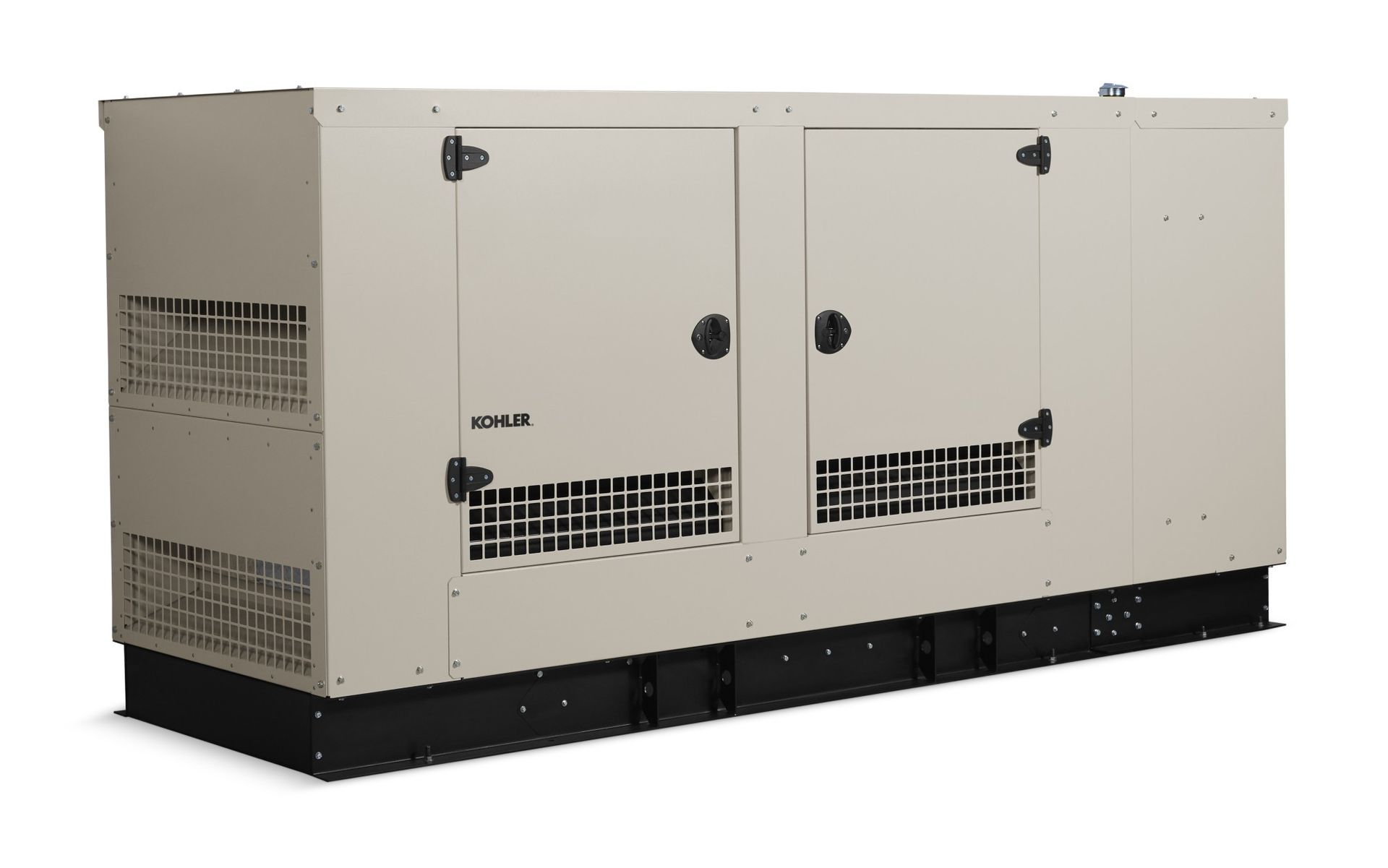

80 kW Generators
KG80R
Reliable power for very large residential or small business needs. Built to weather the storms, hard-working 60/80/100 kW KOHLER® generators with industrial-grade engines keep your family comfortable and your business running when a utility failure or storm knocks out power.
Model Number: KG80R
$28305.00* MSRP
Specifications
| Weight (lbs) | 2948 |
|---|---|
| Weight (kg) | 3146 |
| Dimensions | 3525 mm x 1154 mm x 1665 mm (138.8 in. x 45.4 in. x 65.5 in.) |
| Controller | APM402 |
| Frequency | Hertz60 |
| Alternator Type | 4-Pole, Rotating Field |
| Engine Manufacturer | KOHLER |
| Fuel Type | FuelTypeNaturalGasLPG |
| Cooling Type | ProductCoolingLiquid |
| Cylinder Arrangement | V-8 |
| Displacement | 6.2 L (378 cu. In.) |
| Engine Model | KG6208TA, 6.2L, Turbocharged |
| Engine RPM | 1800 |
| Off-Grid Support | UtilityBackup |
| Remote Monitor | Sold Separately |
| Phase | SinglePhase,ThreePhase |
| Rated kW | 80 |
| Voltage | 120/240 |
| Gas Consumption (50% load) | 803 cfh |
| LP Consumption (50% load) | 272 cfh |
| LP Amps | 334 amps |
| NG Amps | 334 amps |
| Horsepower | NG 126 HP, LP 127 HP |
| Peak Motor Starting kVA | 237 kVa |
| Rated LP kW | 80 kW |
| Rated NG kW | 80 kW |
| Sound Level (Full Speed) | 69 dB(A) |
| Sound Level (Weekly Exercise) | 68 dB(A) |
| Voltage Regulation (Full Load) | ±1.0% |
*Starting price in US dollars. Does not include installation, automatic transfer switch, accessories or costs to export outside the US.
