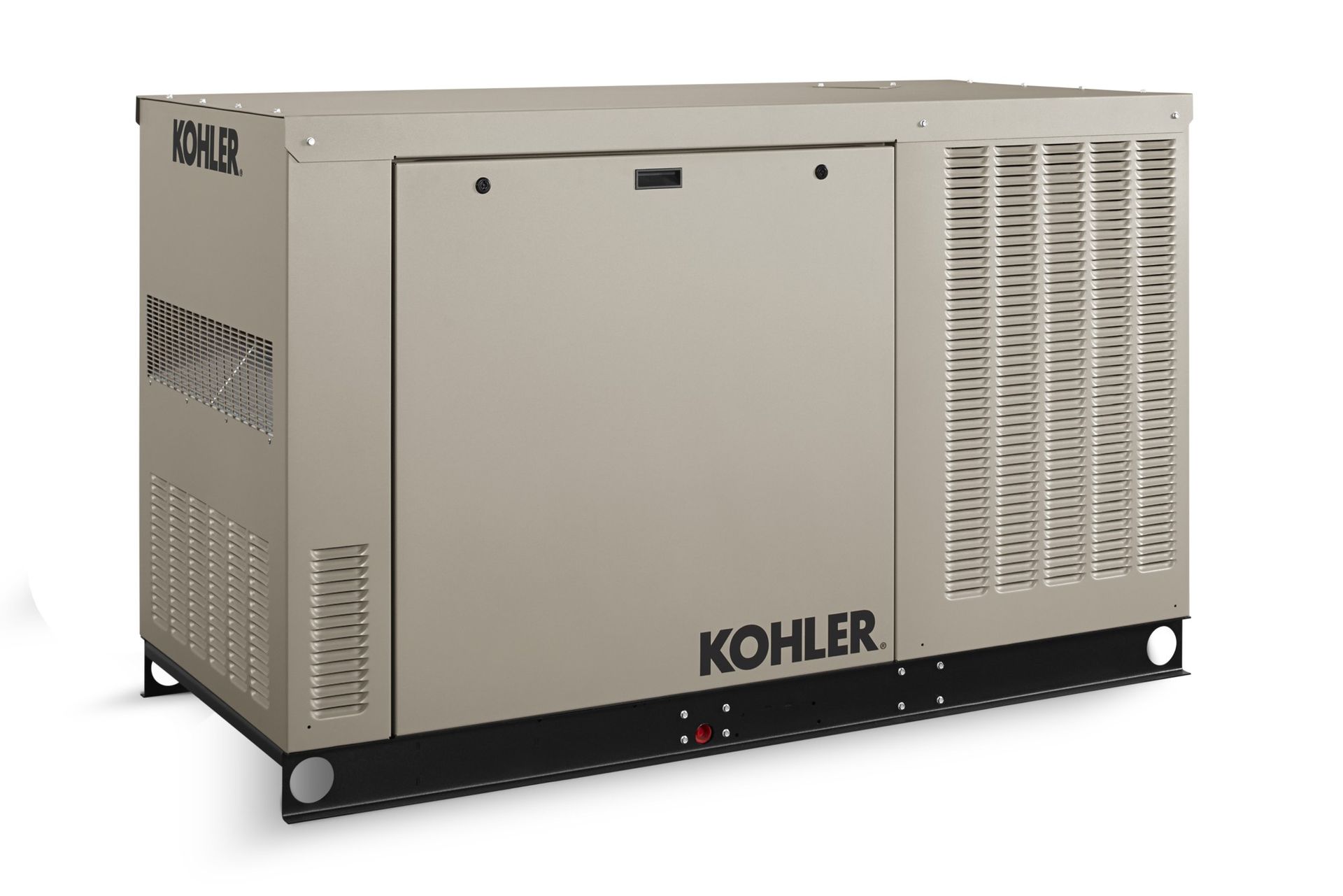

24 kW Generators
24RCLA
Reliable power for large residential or small business needs. When the power goes out during a bad storm or power failure, your 24 kW KOHLER® generator with industrial-grade engine keeps your home or business – from central air to sump pump to personal computers – up and running.
Model Number: 24RCLA
$13365.00* MSRP
Specifications
| Weight (lbs) | 1260 |
|---|---|
| Weight (kg) | 1260 |
| Dimensions | 1880 mm x 836 mm x 1169 mm (74 in. x 32.9 in. x 46.0 in.) |
| Controller | RDC2 Controller |
| Frequency | Hertz50or60 |
| Alternator Type | 4-Pole, Rotating Field |
| Engine Manufacturer | KOHLER |
| Fuel Type | FuelTypeNaturalGasLPG |
| Built-In Mounting Pad | No |
| ATS Included? | SoldSeparately |
| Cooling Type | ProductCoolingLiquid |
| Cylinder Arrangement | Inline-4 cylinder |
| Displacement | 2.2 L (134.25 cu. in.) |
| Engine Model | KG2204, 2.2L, 4-Cycle, Natural Aspiration |
| Engine RPM | 1800 |
| Off-Grid Support | UtilityBackup |
| Remote Monitor | Included |
| Phase | SinglePhase,ThreePhase |
| Rated kW | 24 |
| Voltage | 120/240 |
| LP Amps | 100 amps |
| NG Amps | 87 amps |
| Horsepower | NG 36 HP, LP 40 HP |
| Peak Motor Starting kVA | 37 kVa |
| Rated LP kW | 24 kW |
| Rated NG kW | 21 kW |
| Sound Level (Full Speed) | 61 dB(A) |
| Sound Level (Weekly Exercise) | 54 dB(A) |
| Voltage Regulation (Full Load) | ±1.0% |
*Starting price in US dollars. Does not include installation, automatic transfer switch, accessories or costs to export outside the US.
